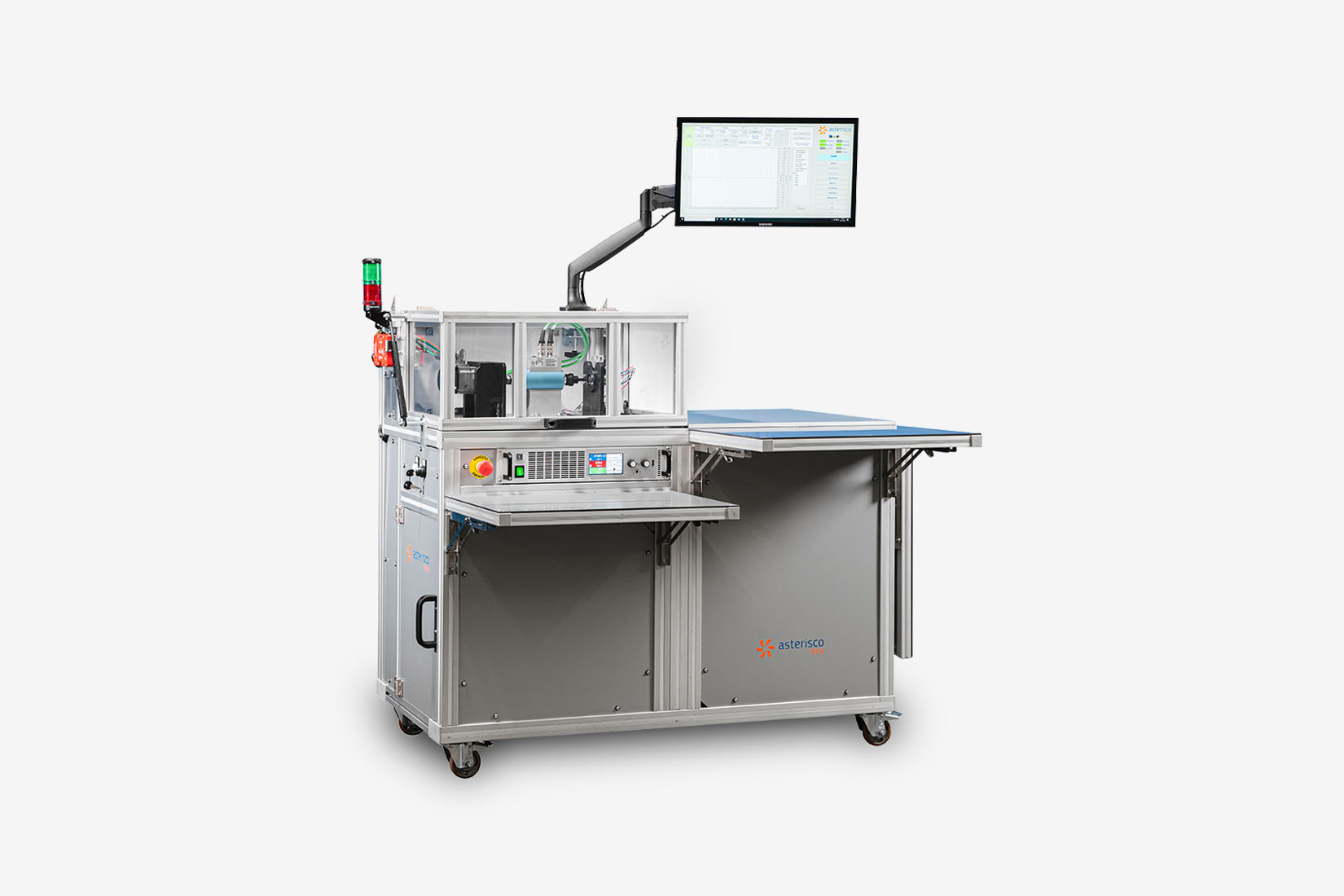

Electric drives test stand
Test stand designed for electromechanical characterization of small size electric servo drives for automotive applications.
1
2
3
1

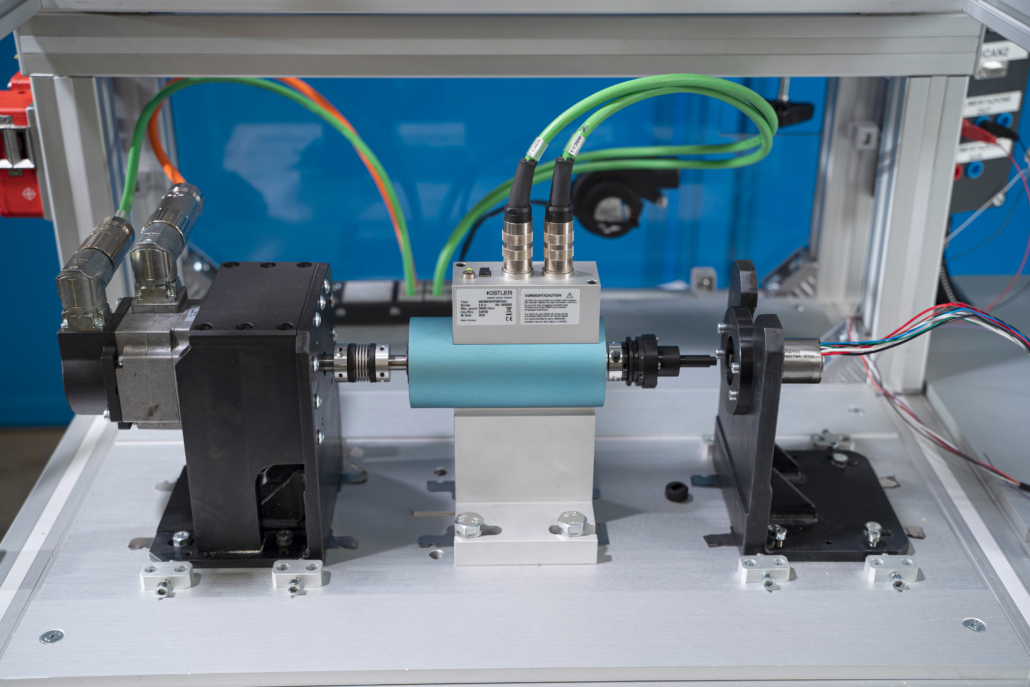

Electric motor and drive under test
2
Brake motor
3
Double scale torque meter
Features
Technical Data
- Supply voltage: 12/24/48 Vdc
- Torque: 20 – 100 mNm
- Maximum speed: 14.000 rpm
- Maximum power: 200 W
- Dimensions: 700 x 1300 x 1900 mm
General characteristics
- Testing of separate or integrated electric motor and drives
- R&D custom products testing
- Testing of different product families through the use of adapter flanges
- Compact mechanical structure on wheels
- Double scale torque meter
- Communication with the device under test via CAN interface
Software
- PC software developed in LabVIEW
- Test execution in automatic, semiautomatic, manual mode
- Customizable test parameters and acceptance thresholds
- SQL Server database data storage
- Remote support
Asterisco Tech designs and manufactures R&D and End-Of-Line testing solutions for mechanic, hydraulic, electric and electronic devices.
